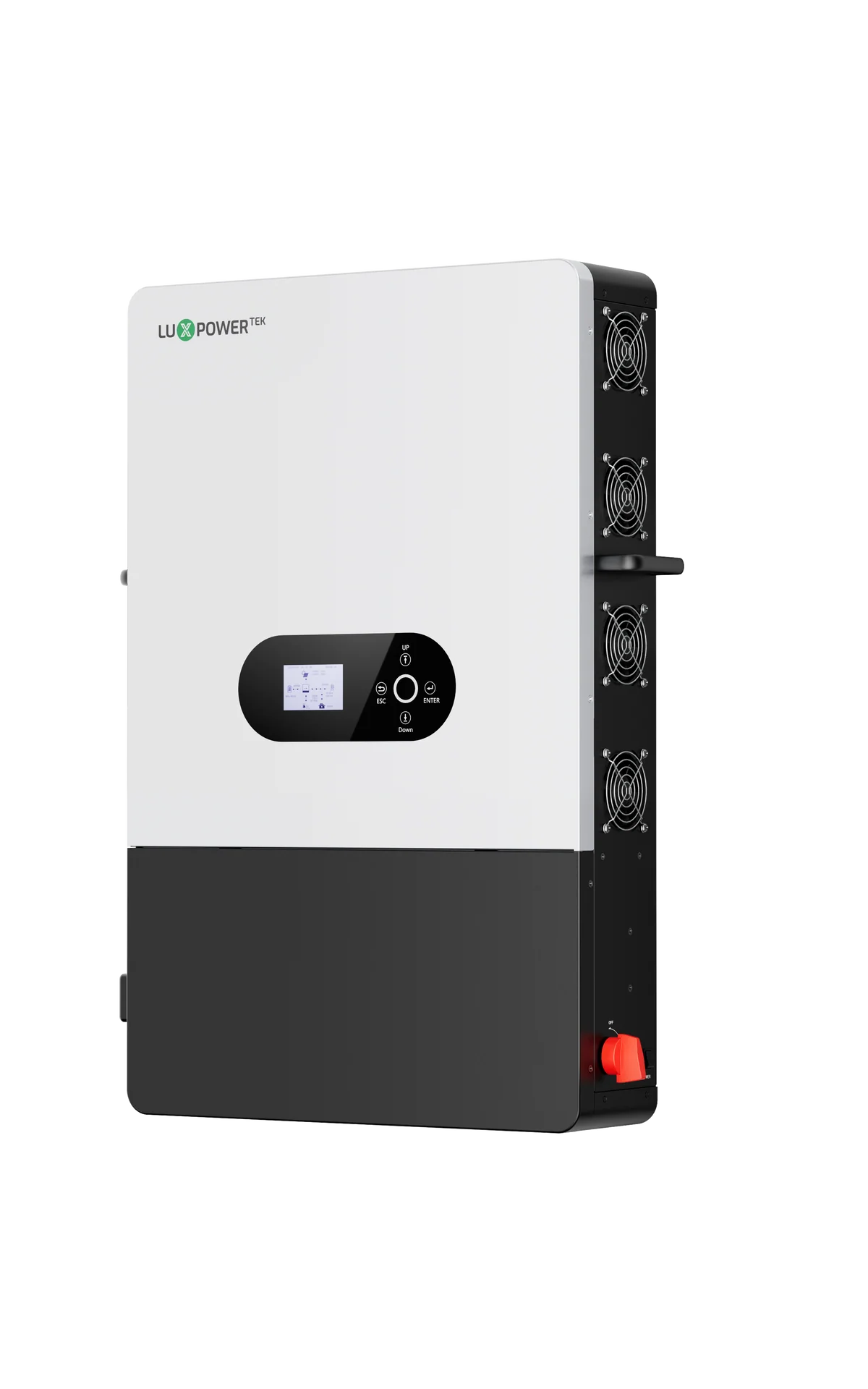

LuxPower 12 kW Hybrid / Off‑Grid Inverter

General

• Type: Hybrid/Off‑grid solar inverter

• Rated Power: 12 000 W / 12 000 VA

• Peak Power: ~14 000 W (10 min) / ~16 000 W (5 min) / ~20 000 W (500 ms)

• Output Waveform: Pure sine wave

• Rated AC Voltage: 230 V – 240 V

• Frequency: 50 Hz / 60 Hz

• Transfer Time: <20 ms (UPS)

• Power Factor: 1

• Protection: OVP, SCP, overload, surge, grid monitoring

• Efficiency: High (MPPT ~99 %)

PV Input

• Max PV Input Power: ~18 000 W

• Max PV Input Voltage: ~600 V

• MPPT Voltage Range: ~230 – 500 V

• Max PV Current: ~25 A / 15 A / 15 A

• No. of MPPT / Strings: 3 MPPT (2/1/1)

Battery & Charging

• Compatible Battery: Lead‑acid & Lithium

• Rated Battery Voltage: 48 V

• Charging Type: MPPT + AC charging

• Max Solar Charge Current: ~250 A

• Max AC Charge Current: ~250 A

Physical

• Cooling: Fan

• Operating Temp.: –25 °C to +60 °C

• Mounting: Indoor/Outdoor (IP65)

• Display/Comms: LCD + Wi‑Fi + RS485 + CAN

• Warranty: ~5 yrs (typical)
