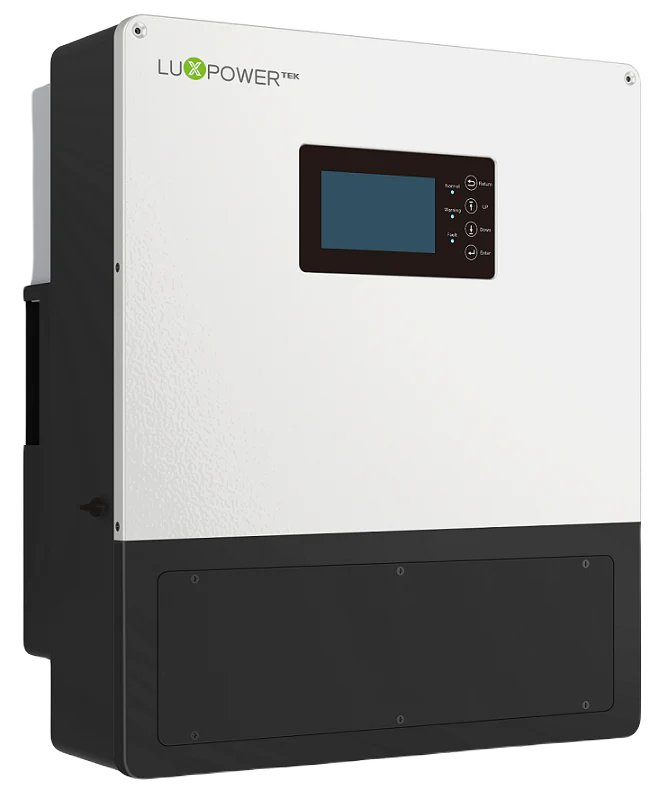

LuxPower 10 kW Hybrid / Off‑Grid Inverter

General

• Type: Hybrid/Off‑grid solar inverter (inverter + solar charger + battery charger)

• Rated Power: 10 000 W / 10 000 VA

• Peak Power: ~14 000 W (10 min) / ~16 000 W (5 min) / ~20 000 W (500 ms)

• Output Waveform: Pure sine wave

• Rated AC Voltage: 230 V – 240 V

• Frequency: 50 Hz / 60 Hz

• Transfer Time: <20 ms (UPS)

• Power Factor: 1

• Protection: OVP, SCP, overload, surge, battery reverse, grid monitoring

• Efficiency: High (MPPT efficiency ~99 %, EU efficiency ~97.5 %)

PV Input

• Max PV Input Power: ~16 000 W

• Max PV Input Voltage: ~600 V

• MPPT Voltage Range: ~210 – 500 V

• Max PV Current: ~25 A / 15 A / 15 A (per MPPT)

• No. of MPPT / Strings: 3 MPPT (multi‑string)

Battery & Charging

• Compatible Battery: Lead‑acid & Lithium

• Rated Battery Voltage: 48 V

• Charging Type: MPPT + AC charging

• Max Solar Charge Current: ~210 A

• Max AC Charge Current: ~210 A

Physical

• Cooling: Fan (intelligent)

• Operating Temp: –25 °C to +60 °C

• Mounting: Indoor/Outdoor (IP65)

• Display/Comms: LCD + Wi‑Fi + RS485 + CAN

• Warranty: Standard Manufacturer (typically 5 yrs)
