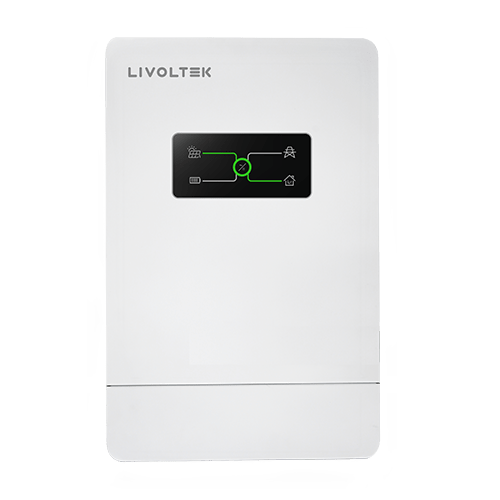

Livoltek 5KW Off-grid Single Phase Inverter - SF GF1-5KZ12S1

Livoltek 5KW Off-grid Single Phase Inverter - SF GF1-5KZ12S1

  • Sale
  • R 9,719.00
  • R 10,999.00
Tax included.

Features

Capacity

  • Rated Power: 5000VA/5000W
  • Peak Power (20ms): 10000VA

PV Input Data

  • Solar Charger Type: MPPT
  • Max. PV Input Power: 600W (40A)
  • Max. PV Input Voltage: 500V
  • MPPT Voltage Range: 90V~450V
  • Solar Charging Current: 40A

AC Input Data

  • Input Voltage Waveform: Sinusoidal
  • Rated Input Voltage: 230Vac
  • Selectable Voltage Range: 170285V (Computers) / 90285V (Appliances)
  • Rated Input Frequency: 50Hz/60Hz
  • Frequency Range: 45-55Hz / 55-65Hz
  • Max. Input Current: 21.7A

AC Output Data

  • Output Waveform: Pure Sine Wave
  • Start Motor: 5HP
  • Rated Voltage: 220/230/240V±10%
  • Surge Power: 10sec (110% ~150%), 2sec (150%~ 200%)
  • Max. Efficiency (Battery Mode): 98%
  • Rated Frequency: 50Hz/60Hz
  • Typical Transfer Time: <4ms
  • Power Factor: 1
  • THDv, Rated Power(%): <3%
  • No Load Loss (Battery Mode): ≤0.8% rated power
  • No Load Loss (AC Mode): ≤2% rated power (charger does not work in AC mode)
  • No Load Loss (Energy Saving Mode): ≤10W

Battery & Charger

  • Battery Type: Lead Acid/Lithium-ion
  • Rated Battery Voltage: 48V
  • Charge Voltage: 14.2V; Float Voltage: 13.8V (Single battery voltage)
  • Charging Algorithm: 3-Step (Constant Current, Constant Voltage, Floating Charge)
  • Max. Charging Current: 100A

Protection

  • System Protection: Battery undervoltage alarm/protection, Battery overvoltage alarm/protection, Battery overvoltage recovery voltage, Overload power protection, Inverter output short circuit protection, Temperature protection

General Data

  • Dimension (WHD): 338x485x147mm
  • Weight: 12kg
  • Protection Degree: IP21
  • Cooling: Fan
  • Operating Temperature Range: -10°C~ 50°C
  • Display: LCD
  • Communication: NTC
