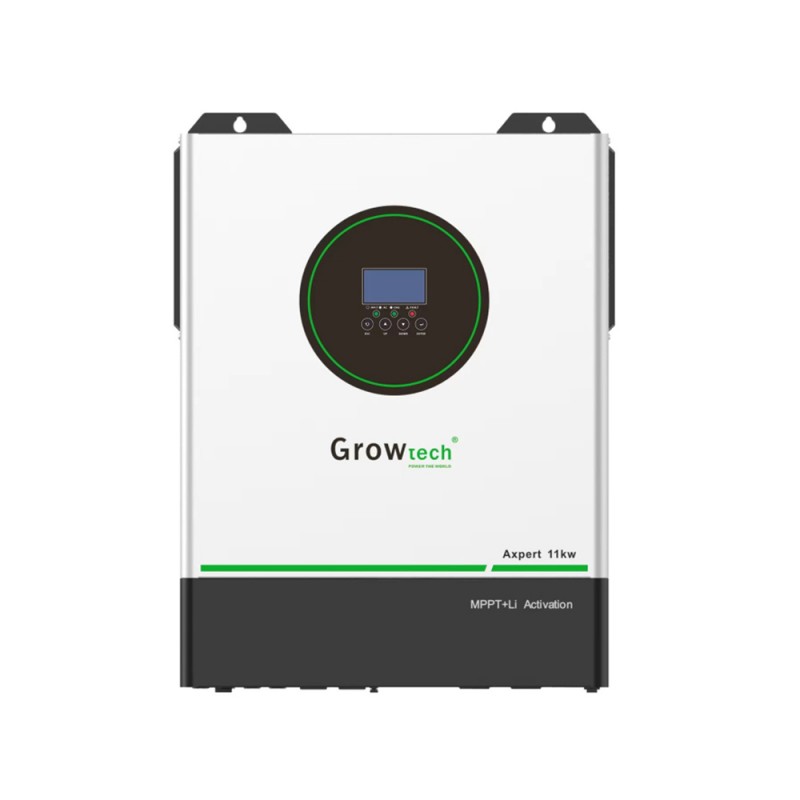

Growtech 11 kW Off-Grid / Hybrid Inverter

General

• Type: Off-grid / Hybrid solar inverter

• Rated Power: 11 000 W / 11 000 VA

• Peak Power: ~22 000 VA

• Output Waveform: Pure sine wave

• Rated AC Voltage: 230/240 V

• Frequency: 50 Hz / 60 Hz

• Transfer Time: <10 ms

• Power Factor: 1

• Protection: OVP, SCP, overload, surge, anti-islanding

• Efficiency: Max up to ~97 %

PV Input

• Max PV Input Power: ~15 000 Wp

• Max PV Input Voltage: ~500 V

• MPPT Voltage Range: ~120 – 450 V

• Max PV Current: ~26 A

• No. of MPPT / Strings: 2 MPPT

Battery & Charging

• Compatible Battery: Lithium & Lead-acid

• Rated Battery Voltage: 48 V

• Charging Type: MPPT + AC charging

• Max Solar Charge Current: ~200 A

• Max AC Charge Current: ~200 A

Physical

• Cooling: Smart fan cooling

• Operating Temp.: –10 °C to +55 °C

• Mounting: Indoor / Outdoor (IP rating model dependent)

• Display/Comms: LCD / Wi-Fi / RS485

• Warranty: Standard (varies with reseller)
