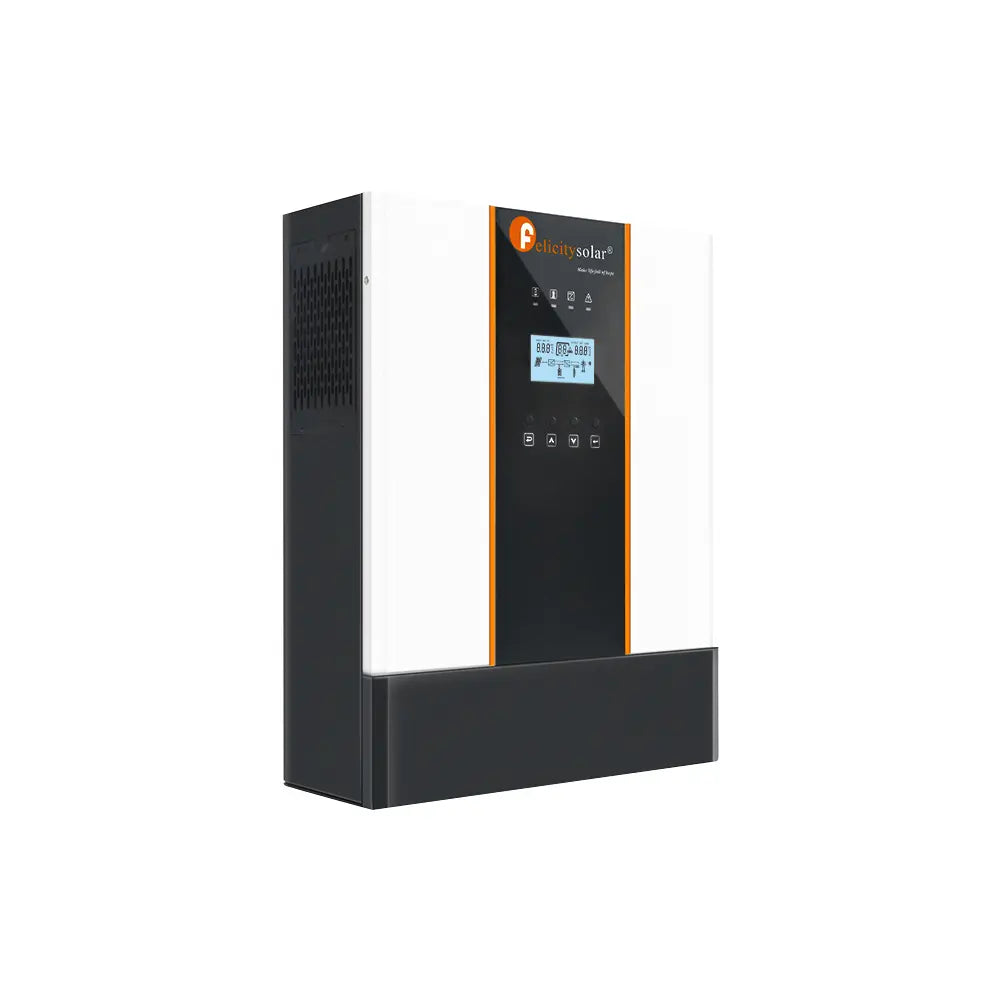

Felicity Solar 3 kW Off-Grid Inverter (24 V)

General

• Type: Off-grid solar inverter (inverter + solar charger + battery charger)

• Rated Power: 3000 W / 3000 VA

• Peak Power: 6000 VA

• Output Waveform: Pure sine wave

• Rated AC Voltage: 220/230/240 V ±5%

• Frequency: 50 Hz / 60 Hz

• Transfer Time: ~10 ms

• Power Factor: 1

• Protection: Overload, OVP, SCP, surge, battery reverse

• Efficiency: Max up to ~95 %

PV Input

• Max PV Input Power: ~3600 Wp

• Max PV Input Voltage: ~450 V

• MPPT Voltage Range: ~60 – 430 V

• Max PV Current: ~18 A

• No. of MPPT / Strings: 1 MPPT (2 strings)

Battery & Charging

• Compatible Battery: Lead-acid & Lithium

• Rated Battery Voltage: 24 V

• Charging Type: MPPT + AC charging

• Max Solar Charge Current: ~80 A

• Max AC Charge Current: ~60 A

Physical

• Cooling: Fan

• Operating Temp.: –10 °C to +55 °C

• Mounting: Indoor wall-mount

• Display/Comms: LCD / LED

• Warranty: Standard
