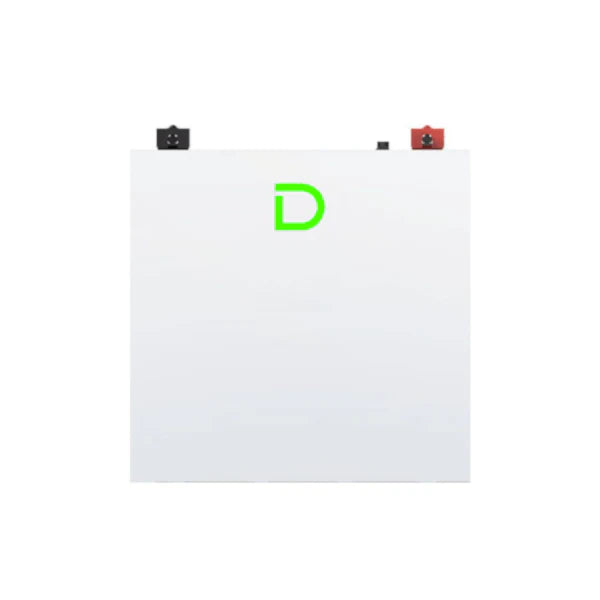

Dyness 5.0C PRO 5.12 kWh – 51.2 V 100 Ah Battery (NEW MODEL)

General

• Battery Type: Lithium Iron Phosphate (LiFePO₄)

• Nominal Voltage: 51.2 V

• Capacity: 100 Ah

• Energy: 5.12 kWh

• Usable Energy: ~4.6 kWh (90% DoD)

• Cycle Life: ≥6000 cycles @ 80% DoD

• Depth of Discharge: Up to 90%

• Protection: Enhanced BMS (UP, UV, OC, SC, temp, balancing)

• Efficiency: ≥95%

Electrical

• Max Continuous Discharge Current: ~100 A

• Max Charge Current: ~100 A

• Parallel Connection: Supported

Physical

• Cooling: Natural convection

• Operating Temp.: –10 °C to +55 °C

• Mounting: Rack / Wall

• Communication: CAN / RS485 / Bluetooth (optional)

• Warranty: Standard
