Features
- High efficient, PWM controller
- PWM charging makes the charging efficiency increase by 3% to 6%
- Reverse polarity & high/low voltage battery protection
- Output current & short circuit protection
- USB charging functional(option)
- ON/OFF load switch at front of controller for convenience
- Intuitionistic LED indicators show battery capacity , charging and discharging state of the battery
- LCD display shows system status at all times
- Working parameters and battery type can be set
- Automatic Identification System Voltage Level
- Automatic Temperature Compensation
- Accumulated function of charge and discharge Ampere hours
- Remote monitoring and control function(custom)
- Battery reverse-discharge protection, Overload, Short Circuit protection, Battery reverse-connection protection

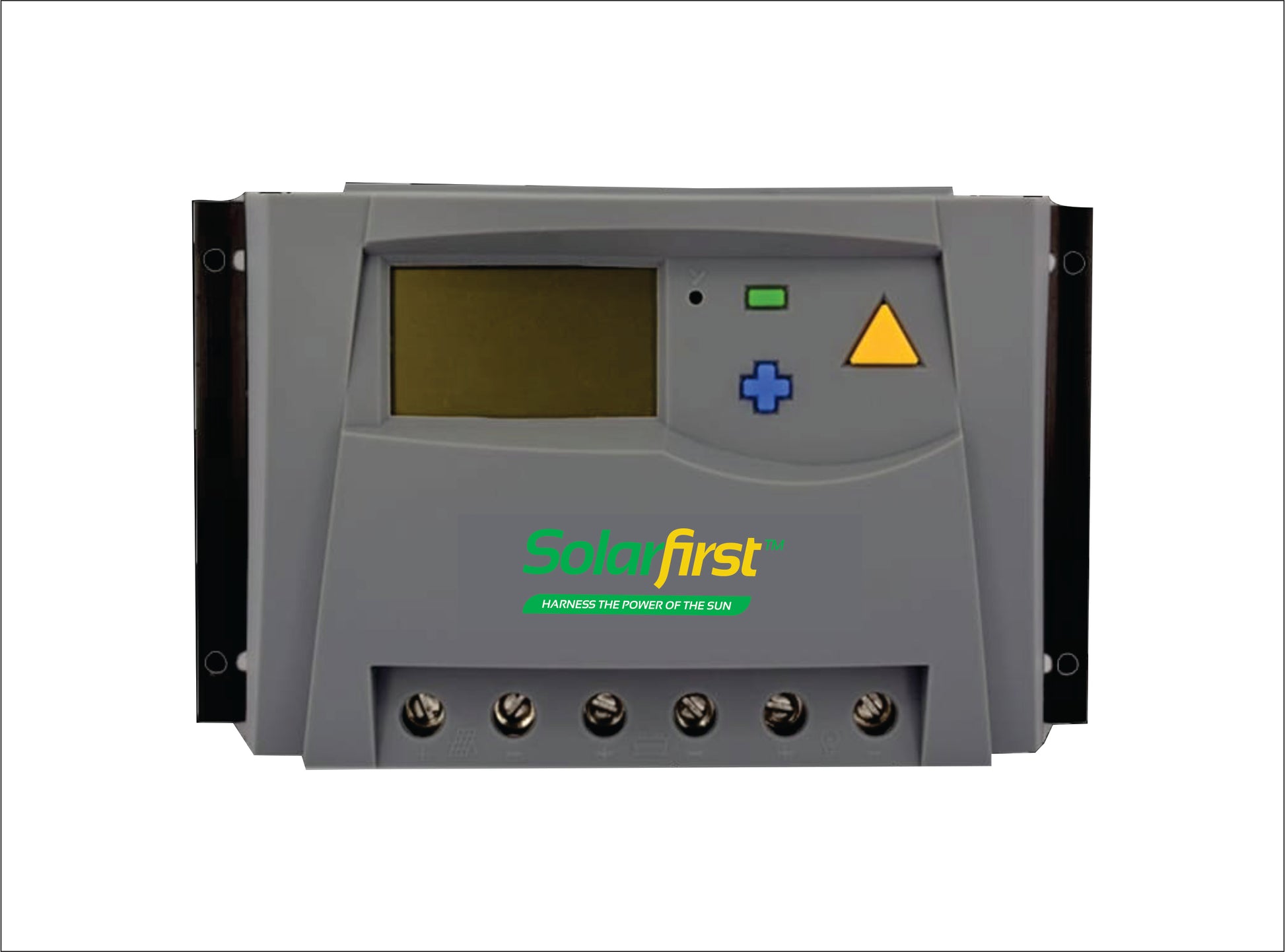

Model | SF60D |
Rated Voltage | 12V/24V |
Rated Current | 60A |
Max PV Voltage | 50V |
Max PV Input Power | 780W(12V) 1560W(24V) |
