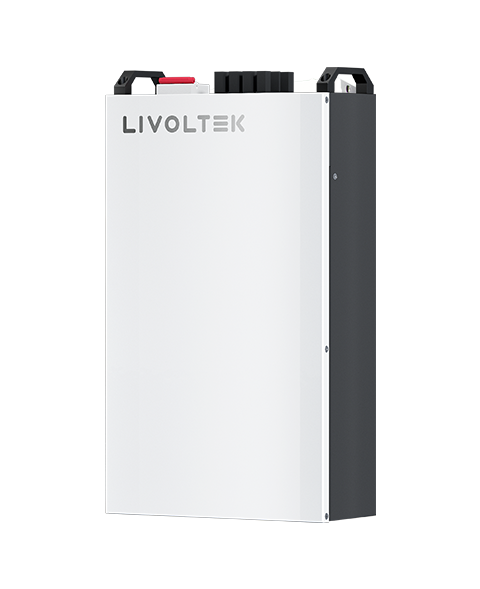

5KW Livotek Low Voltage Battery for Off-Grid Inverter - SFBLF-B51100

Battery Specifications

• Battery Type: LFP
• Nominal Voltage: 51.2V
• Operating Voltage Range: 43.2V ~ 57.6V
• Nominal Capacity: 100AH
• Nominal Energy: 5.12kWh
• Depth Of Charge: 90%
• Usable Energy: 4.6kWh

Dimensions

• Dimension (WDH): 335*622*135.5 mm

Weight

• Weight: 42.6kg

Performance

• Max. Charge/Discharge Current: 100A/100A
• Operating Temperature:
  • Charge: 0°C ~ 50°C
  • Discharge: -10°C ~ 55°C
• Operating Humidity: 5% ~ 95%
• Storage Temperature: -20°C ~ 60°C
• Operating Altitude: Below 4000m
• Communication: RS485/CAN
• Scalability: Up to 5 Modules/25kWh
• Cooling Type: Natural
• Ingress Protection: IP21/IP65
• Cycle Life: 6000 Cycles
• Standard Warranty: 5 Years
• Authentication Level: IEC62619/CE/UN38.3
