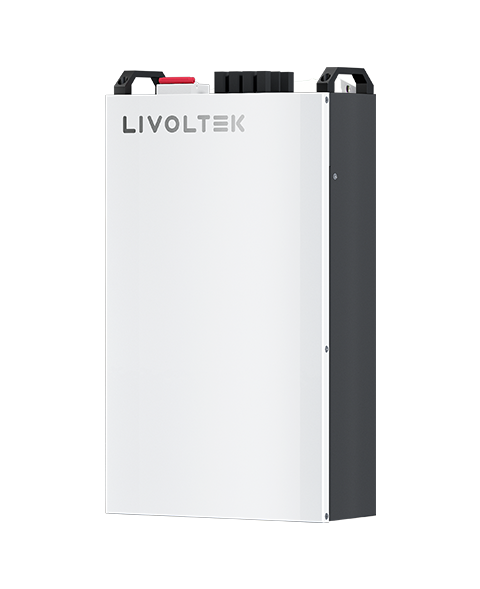

5KW Livotek Low Voltage Battery for Off-Grid Inverter - SFBLF-B51100
Tax included.
Battery Specifications
-
Battery Type: LFP
-
Nominal Voltage: 51.2V
-
Operating Voltage Range: 43.2V ~ 57.6V
-
Nominal Capacity: 100AH
-
Nominal Energy: 5.12kWh
-
Depth Of Charge: 90%
-
Usable Energy: 4.6kWh
Dimensions
-
Dimension (WDH): 335*622*135.5 mm
Weight
Performance
-
Max. Charge/Discharge Current: 100A/100A
-
Operating Temperature:
-
Charge: 0°C ~ 50°C
-
Discharge: -10°C ~ 55°C
-
Operating Humidity: 5% ~ 95%
-
Storage Temperature: -20°C ~ 60°C
-
Operating Altitude: Below 4000m
-
Communication: RS485/CAN
-
Scalability: Up to 5 Modules/25kWh
-
Cooling Type: Natural
-
Ingress Protection: IP21/IP65
-
Cycle Life: 6000 Cycles
-
Standard Warranty: 5 Years
-
Authentication Level: IEC62619/CE/UN38.3
