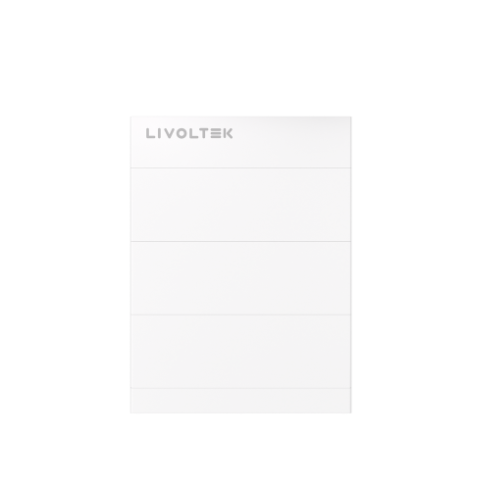

25KW Livoltek High Voltage Battery - SFBHF-S25

Battery Specifications

• Nominal Voltage: 512V
• Operating Voltage: 432V-576V
• Battery Module: 102.4V 50Ah 5.12kWh
• Number of Modules: 5
• Total Energy: 25.6kWh
• Usable Energy: 23kWh
• Rated Capacity: 50Ah
• Nominal Power: 12.8kW
• Max. Power: 24.6kW
• Recommended Charge/Discharge Current: 25A
• Max. Charge/Discharge Current: 48A

General Data

• Cycle Life: 6000 Cycles
• Warranty: 5 Years
• Operating Temperature Range:
  • Charge: 0°C ~ 55°C
  • Discharge: -20°C ~ 55°C
• Storage Temperature: -20°C ~ 55°C
• Operating Humidity: 5% ~ 95%
• Operating Altitude: Below 4000m
• Protection Degree: IP65
• Installation Location: Wall-mounted / Ground-mounted
• Battery to Inverter Communication: CAN
• Battery to Battery/BMS Communication: CAN
• Certificate: CE, UN38.3, IEC62619, IEC61000
• Protection Level: I
• Dimension (WHD): 870*1167*208.7 mm
