High Pressure

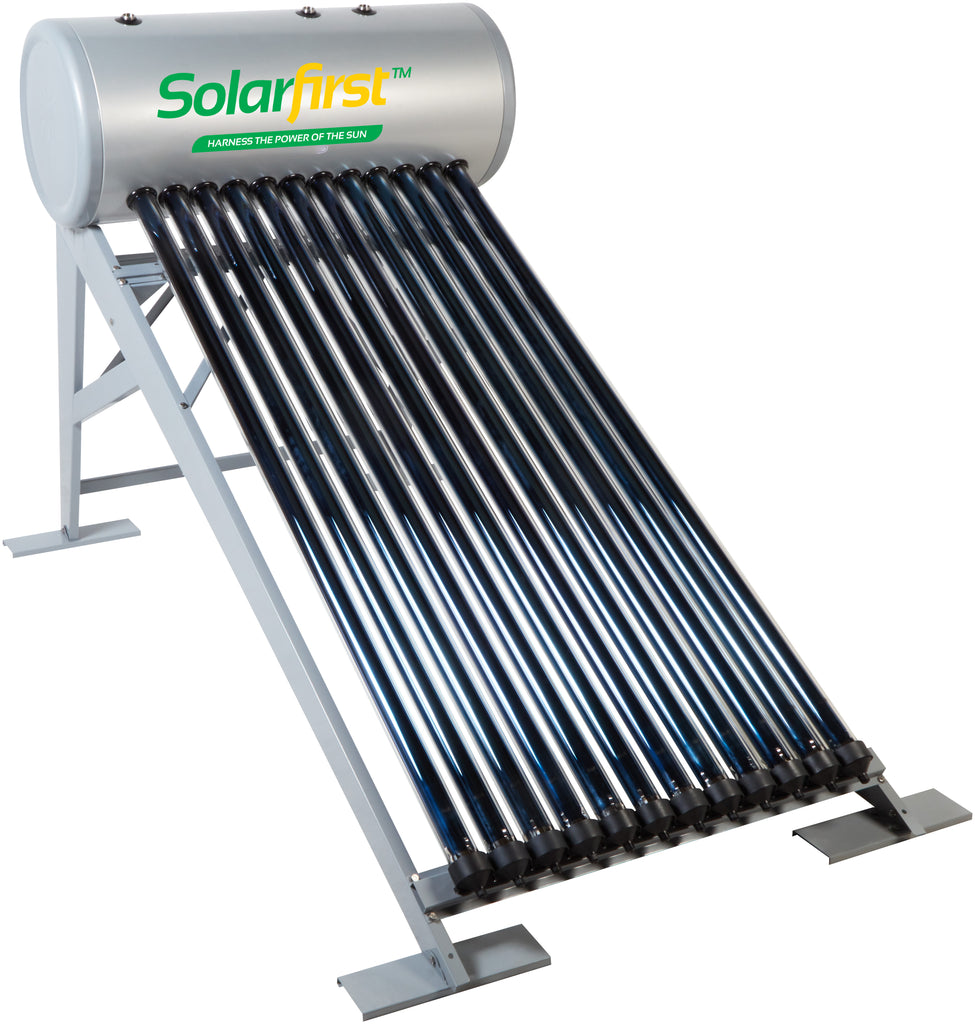

- High Pressure Solar Geyser rated at 400kPa
- Dual system that can work on both solar and electric element backup
- Hail and freeze resistant evacuated tubes that absorb UV rays even on overcast days
- Stainless Steel inner tank
- Tough pre-coated, corrosion resistant outer tank
- Extra thick insulation material to reduce heat loss
- 2-in-1 Frame for pitch and flat roof installation.
- Good for pressurised water and shower use.
Storage Tank
Capacity: 100L
Inner Tank Material: Stainless Steel
Inner Tank Diameter: 360mm
Insulation Material: Polyurethane
Insulation Thickness: 50mm
Insulation Density: 36kg/m²
Outer Tank Material: Coloured Steel
Outer Tank Diameter: 460mm
Working Pressure: 400kPa
Energy Rating: B
Element: 1.5KW(SATCHWELL)
Collector/Tube
Outer Tube Diameter: 58mm
Outer Tube Material: High Borosilicate glass
Tube No: 12pcs
Thickness: Average 2.2mm
Inner Tube Diameter: 47mm
Inner Tube Material: High Borosilicate glass
Collector Area: 1.66m²
Perfomance
Q Factor (System Output): 12.3(16MJ/m²)
Hail Test: Hail resistance/20mm
Freeze Test: Freeze Resistance
Frame
Material: Powder-coating Zinc
Installation: Roof, Floor Horizontal
