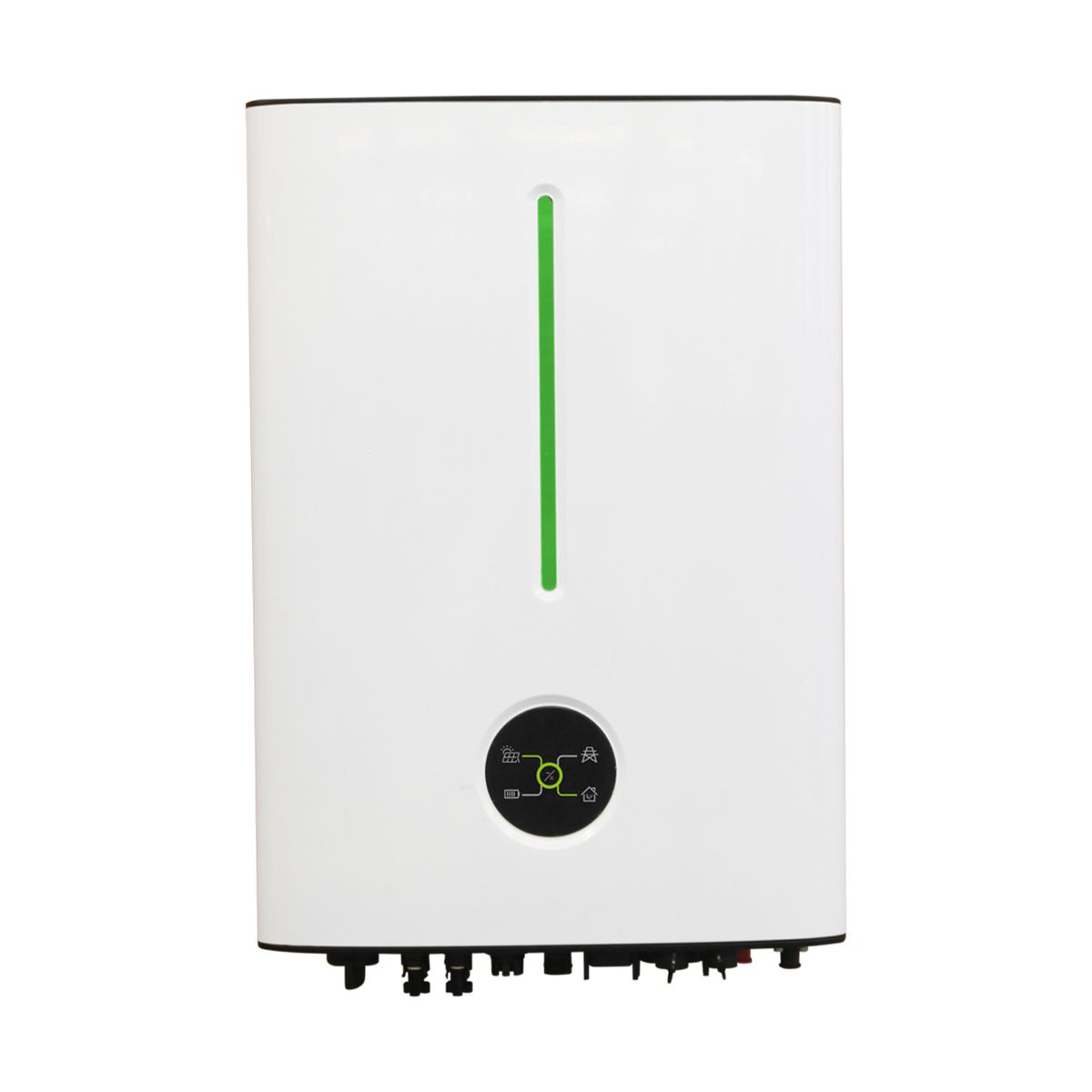

Livoltek 5KW Hybrid Single Phase Inverter - SFHYPER-500

Features

PV Input

• Max. PV Input Power: 7500 Wp
• Max. PV Input Voltage: 600 V
• Nominal Input Voltage: 360 V
• MPPT Voltage Range: 125-550 V
• No. of MPPTs/Strings per MPPT: 2/1
• Max. PV Current: 14 A
• Max. Short Circuit Current: 17/17.5 A

AC Output @ Grid

• Nominal AC Power: 5000 W
• Max. Apparent Output Power: 5000 VA
• Nominal AC Voltage: 220 V/230 V/240 V
• Nominal AC Voltage Range: 186-290 V
• AC Frequency: 50 Hz/60 Hz
• Max. AC Current: 23.9 A
• THDi, Rated Power: <3%
• Power Factor: ~1 (Adjustable from 0.8 Leading to 0.8 Lagging)

EPS Output @ Off Grid

• Nominal EPS Power: 5000 W
• EPS Peak Power: 1.1 x Pnom (60 sec); 1.5 x Pnom (1 sec)
• Nominal Output Voltage: 220 V/230 V
• Nominal Frequency: 50 Hz/60 Hz
• Nominal Output Current: 21.7 A
• THDv, Rated Power: <3%

Battery Input

• Battery Type: Lithium
• Battery Voltage: 40-60 V
• Max. Charge/Discharge Current: 100 A
• Communication with BMS: CAN

Efficiency

• Max. Efficiency: 97.8%
• Euro Efficiency: 97.4%

General Data

• Dimensions (WDH): 415625155 mm
• Weight: 30 kg
• Mounting Method: Wall Mount Bracket
• Protection Rating: IP65
• Cooling: Natural Convection
• Operating Temperature Range: -25°C to +60°C (Derating >45°C)
• Display: LED & APP
• Communication: Wi-Fi/DRM/CAN/RS485
• Standard Warranty: 2 Years
